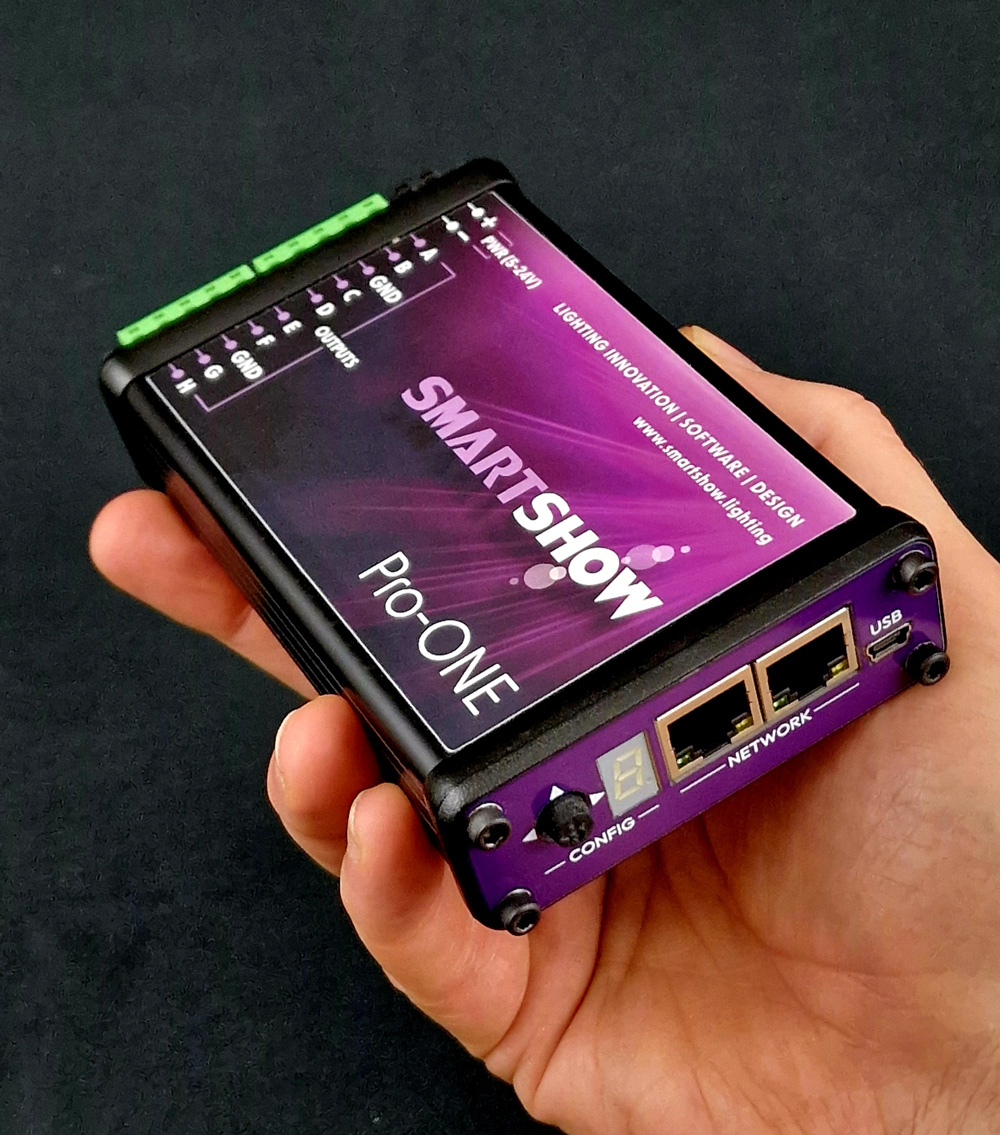

“Unleash the power of the SmartShow Pro-ONE”

This is the SmartShow Pro-ONE, our cutting-edge Pixel Controller, a revolutionary device designed for advanced network control over your lighting displays. With versatility and performance at its core, this controller is an indispensable tool for light show artists, stage designers, and professional installers seeking robust, efficient, and cohesive pixel control solutions.

• Stage Performances
• Professional Light Displays
• Architectural Illumination
• Event Lighting
• Themed Attractions

The SmartShow Pro-ONE transcends traditional limitations, offering you unparalleled control, enhanced capacity, and adaptable configuration options. Whether for live events, fixed installations, or creative projects, entrust your lighting spectacle to the unmatched capabilities of our advanced controller and elevate your lighting artistry to monumental heights.

This unit is Retail packaged in a reusable foam-lined presentation box.

“Bring your Pixel installations to life with SmartShow”

If you want a bulk quantity of this product, please reach out to our sales team to discuss purchasing options.

Networking/Input

• Integrated isolated 10/100 Ethernet network two-port switch
• Can receive up to 32 Art-Net II/III/IV Unicast Universes (16,384 channels)
• Can receive up to 28 Streaming ACN (sACN/E1.31) Unicast Universes (14,336 channels)

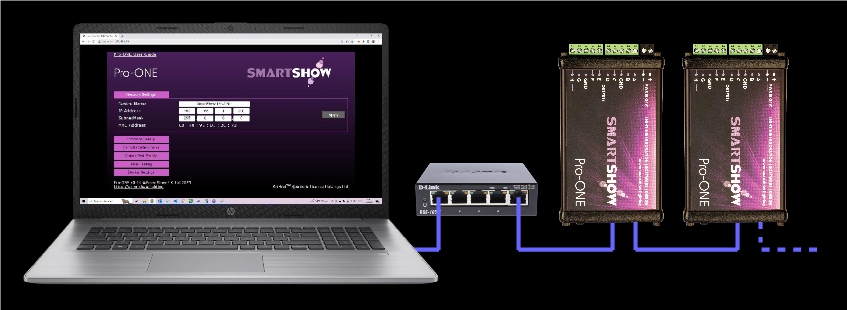

• Easy daisy-chaining of multiple Pro-ONEs on one Ethernet network
• ArtSync-ready for a fully synchronised display

Output Ports

• Individual ports are capable of driving pixel data up to 100m using standard twin cable (ground and data) *limitations apply
• Each Port can output up to 1020 RGB Pixels, or 768 RGBW Pixels

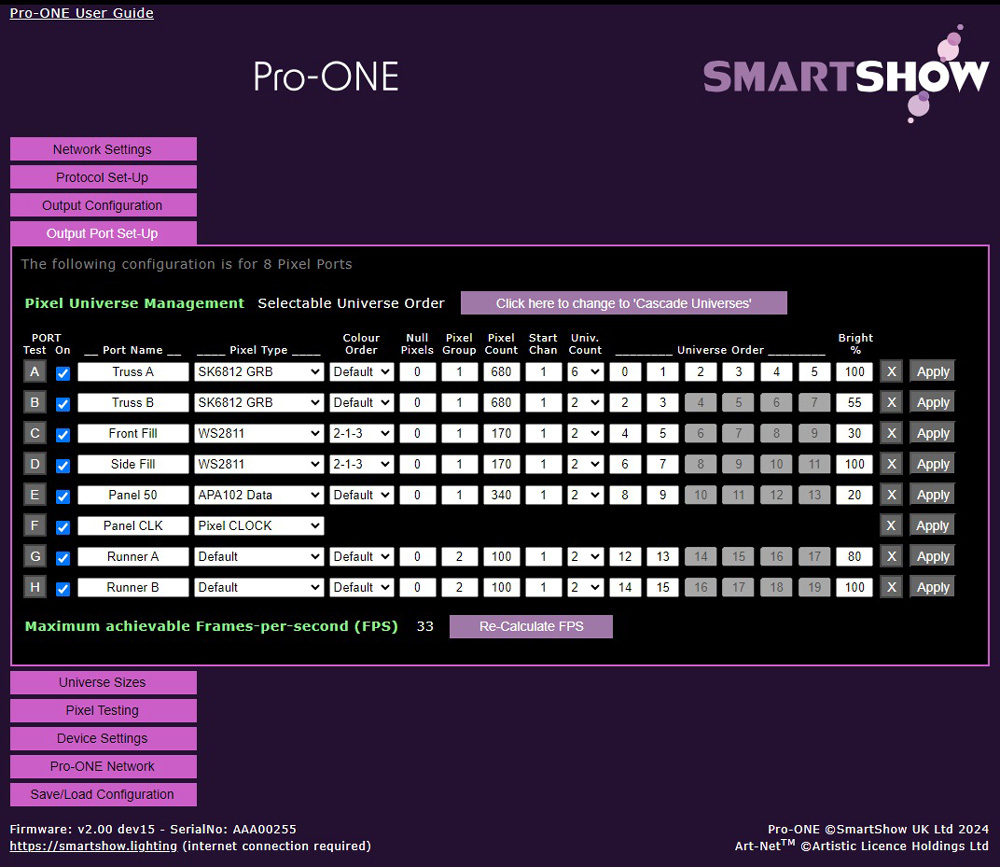

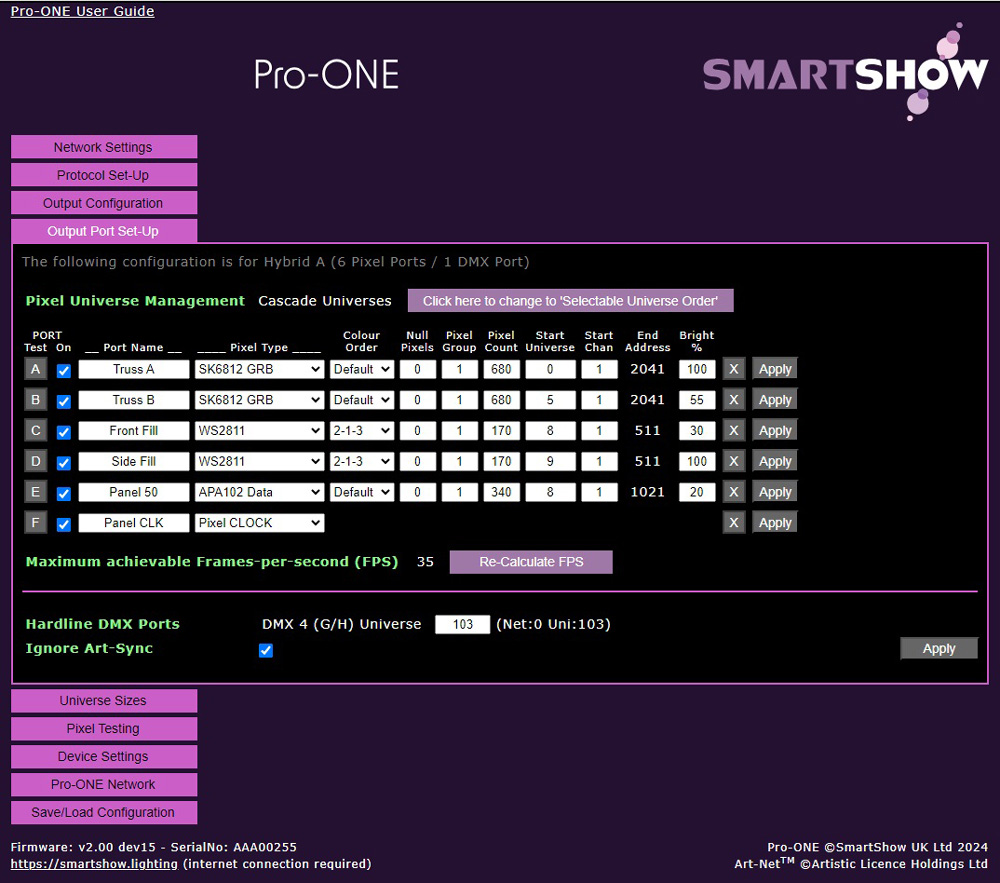

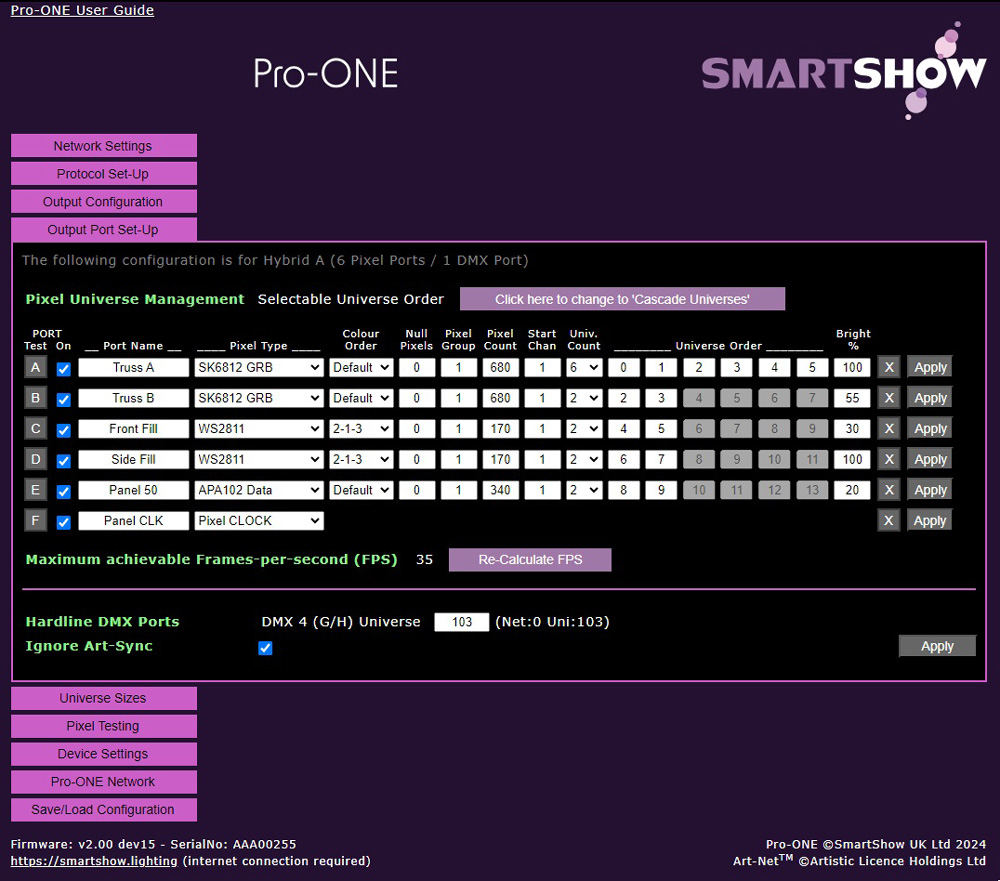

• Each Port can be individually customised within the webUI for Port Name, Pixel-Type, Colour-Order, Null, Pixels, Grouping, and Brightness

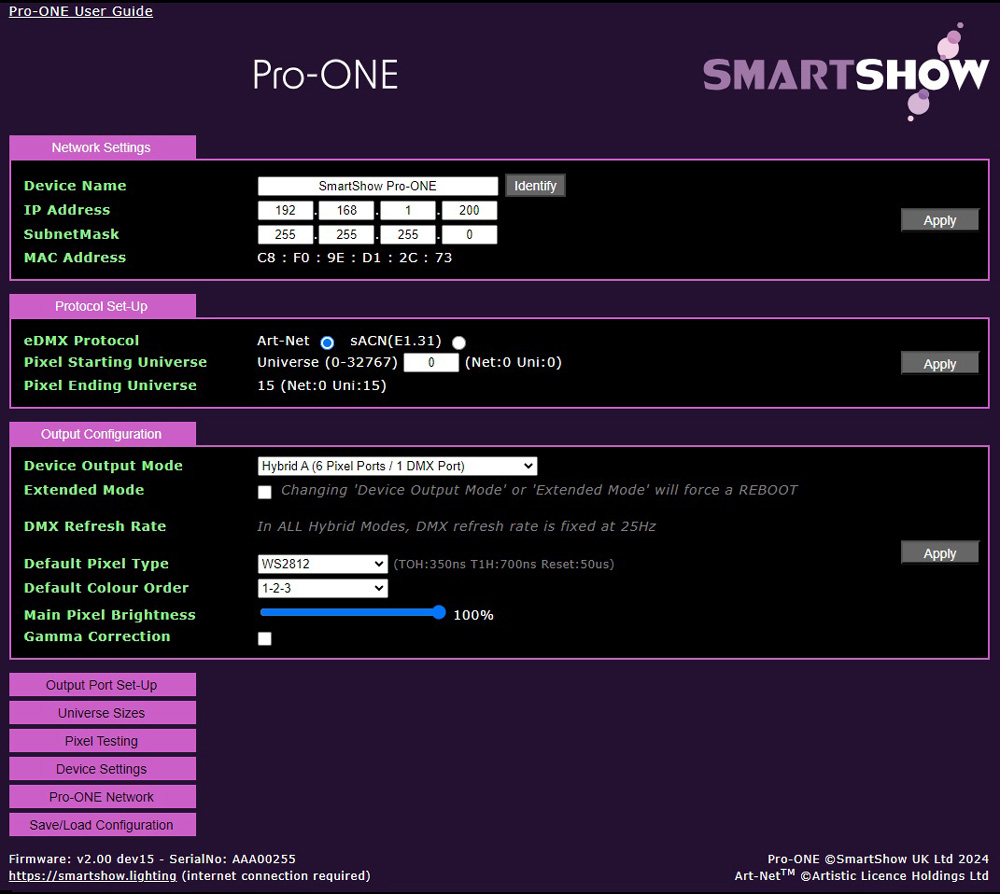

• The device can be configured into one of the following Modes (fw 2.0 onwards) :
  8 Pixel Ports
  6 Pixel Ports + 1 DMX Port
  4 Pixel Ports + 2 DMX Ports
  2 Pixel Ports + 3 DMX Ports
  4 DMX Ports

Supported Pixel Types

• One-Wire Pixels:
  GS8208, SK6812GRB, SK6812GRBW, SK6812GRB+W*, UCS2903, UCS2904, UCS2904RGB+W*, WS2811, WS2812, WS2812B, WS2813, WS2815
• Two-Wire Pixels:
  APA102, HD107S, NS107, SK9822, WS2801

Indicators

• Individual port activity indicators to assist with troubleshooting
• Clear single-digit Status/IP display
• All indicator LEDs can be dimmed or switched off entirely for use in zero-light pollution zones

User Interface

• 4-way joystick control to set IP, access configuration mode, pixel test, display flip, reboot or factory reset
• User Guide is embedded into firmware and accessed directly from webUI, so you can never lose it

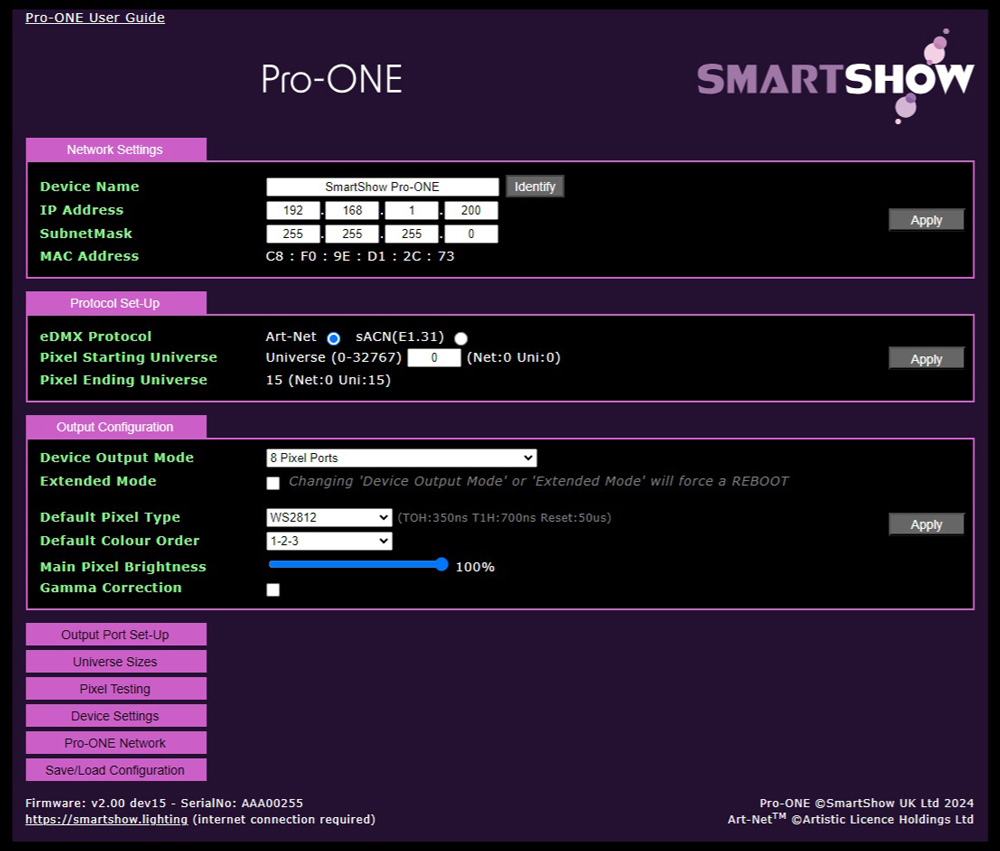

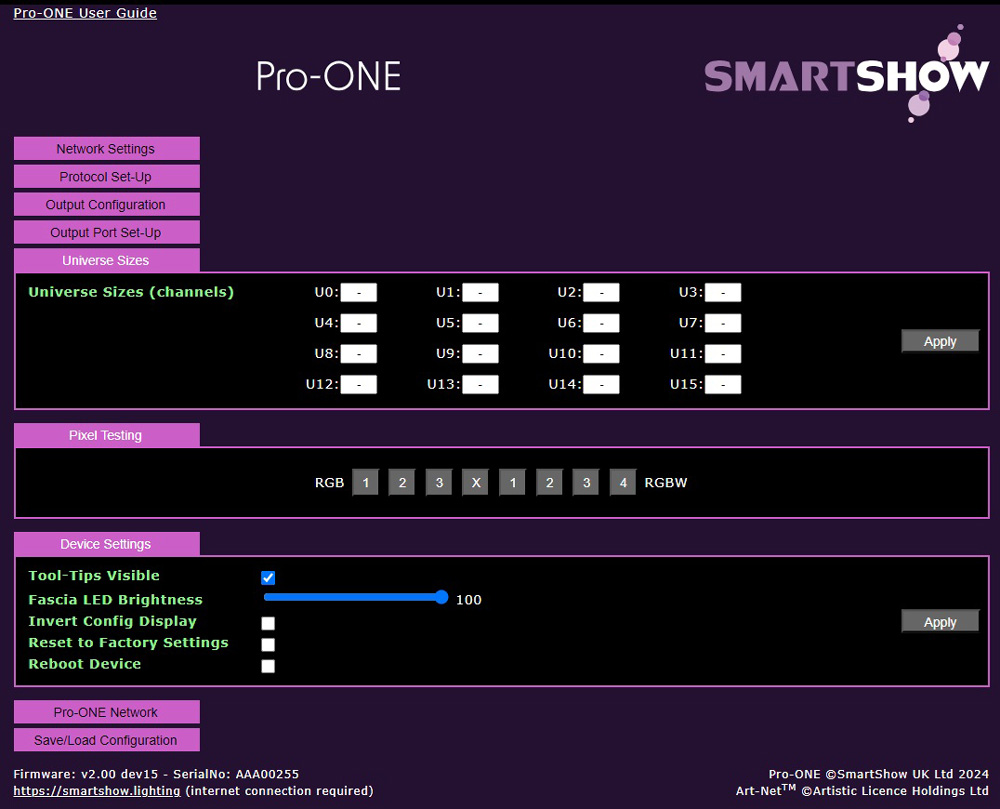

• Clear and simple-to-use WebUI page for complete control over device configuration and testing

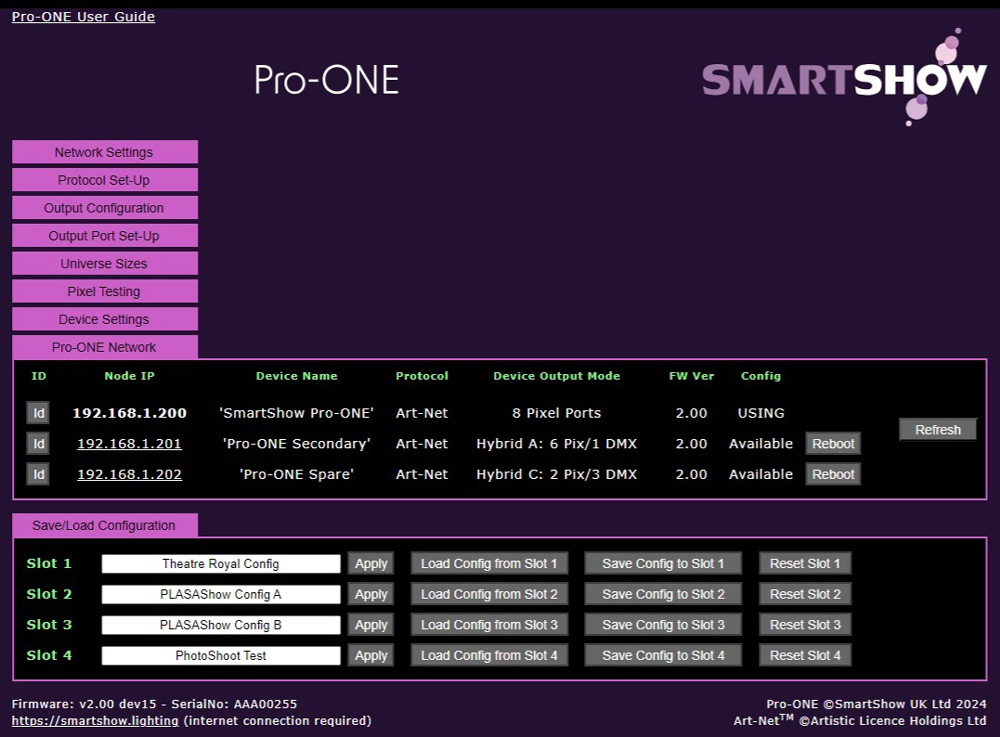

• SmartShow ‘Pro-ONE Network’ information visible from WebUI (fw 2.0 onwards)
• Configuration save/load to any one of four nameable slots (fw 2.0 onwards)

Connectors & Power

• Removable screw-terminal power input and Port output connectors
• Power: 5-24V DC input supply via 2-way pluggable screw terminals
• USB interface for firmware uploads (or separate USB powering if required)
• Overcurrent and reverse power protection

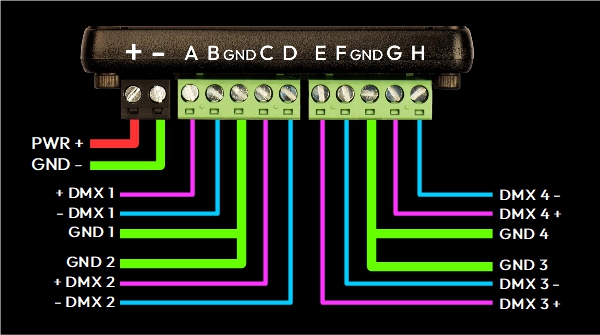

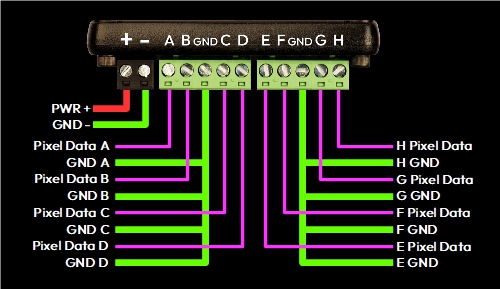

• Pixel Data: 2 x 5-way pluggable screw terminals

Mounting Hardware

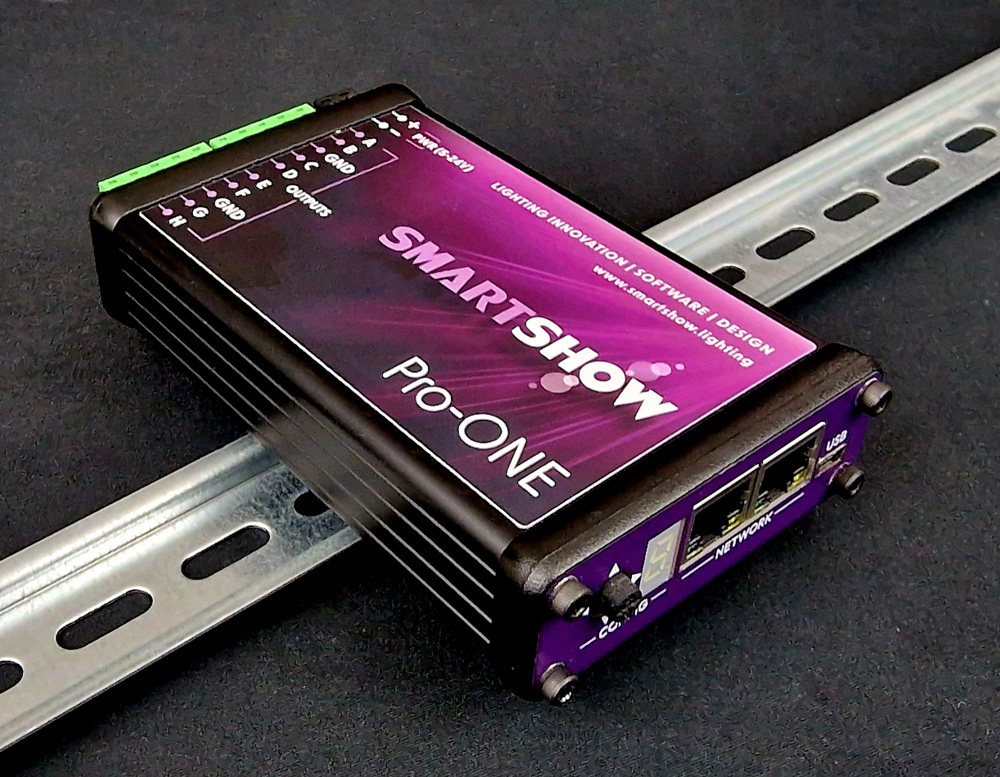

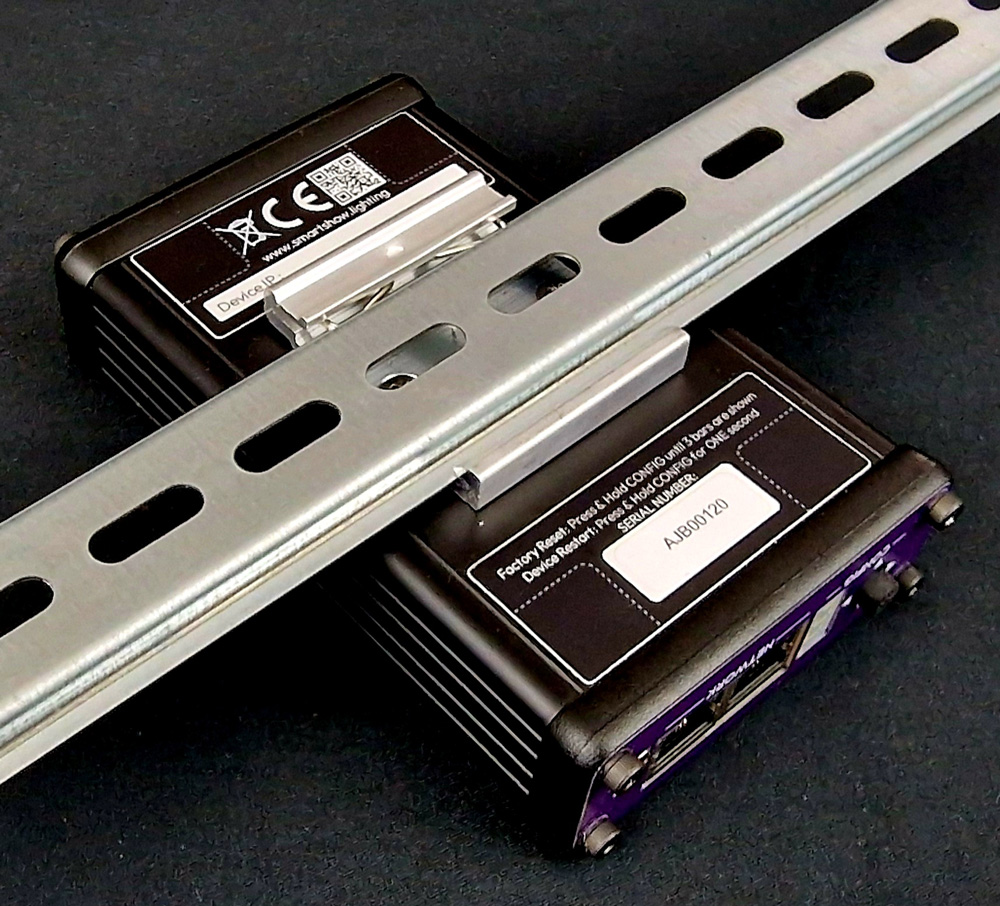

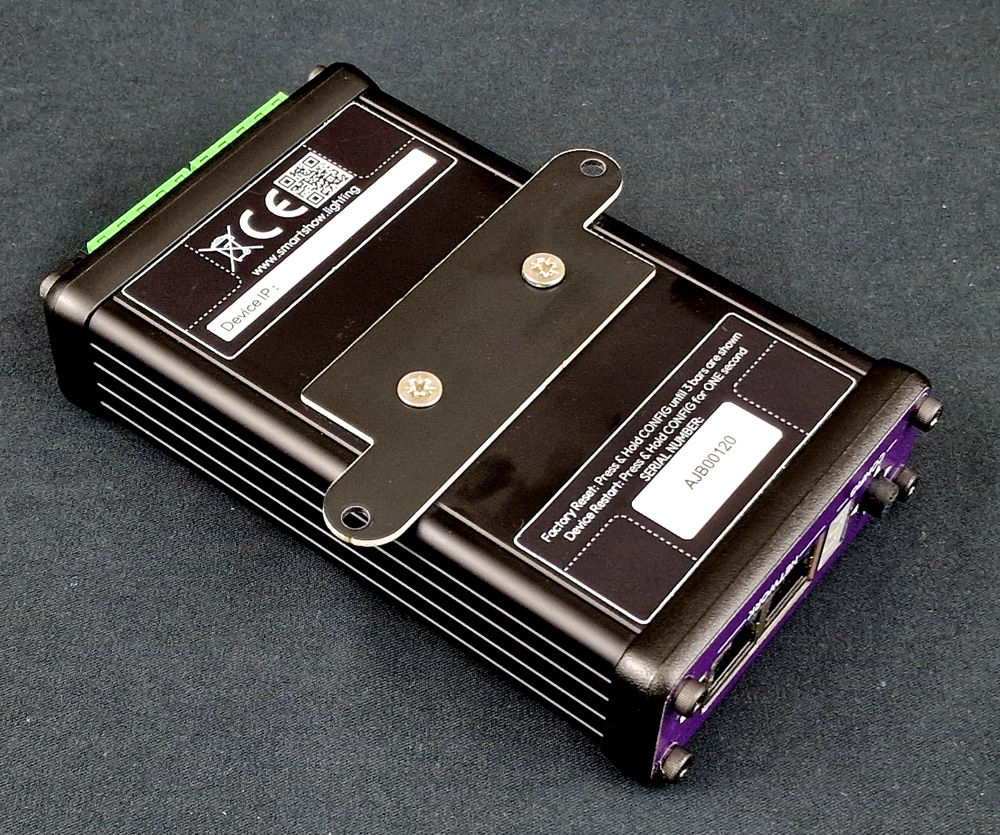

• Desktop, Panel screw-mount or DIN rail mounting options (fitting kit included)

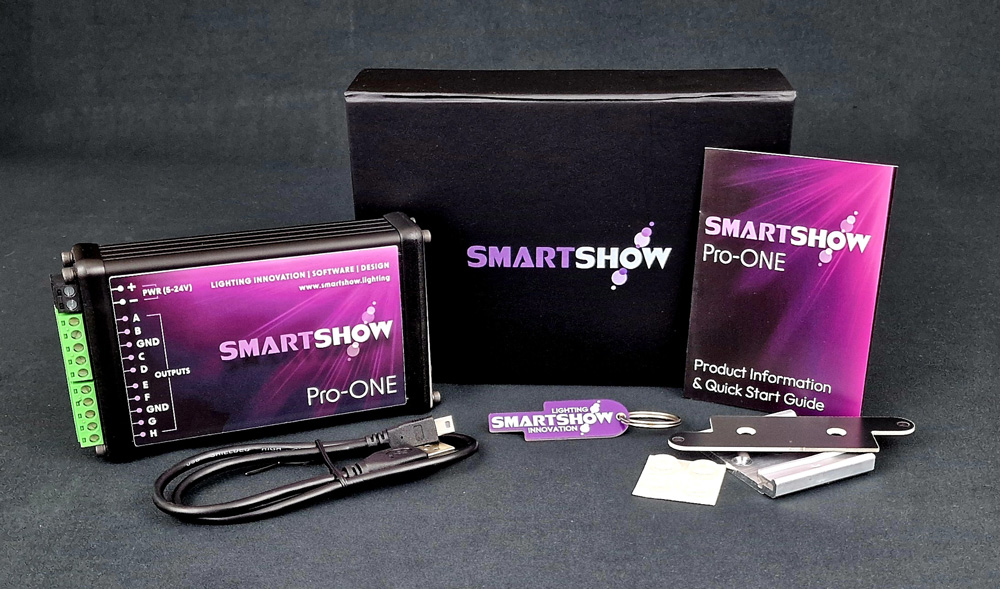

Parts Supplied

• Pro-ONE (with connectors fitted)
• Retail presentation box with foam inner
• Quick Start Guide
• Accessories pack (DIN rail mount, flush mount, Keyring, desktop feet)

Dimensions & Weight

• Product (inc connectors): 140mm length, 80mm wide, 30mm high, Weight 250g
• Retail Box Packaging & Accessories: 175mm length, 125mm width, 50mm high, Weight 440g

Product Compliance

• Pro-ONE CE Certification (PDF)

Product Compliance information

This device conforms to the following standards:

• Conducted Emissions: DIN EN 55015 Annex J (CISPR 15) & ICES-003, part 4 (Class A Digital Device Limits)
• Radiated Emissions: DIN EN 55015 Annex D (CISPR 15) & ICES-003, part 5 (Class A Digital Device limits)
• Electrostatic discharge: EN61000-4-2
• General Product Safety Regulations 2005 (GPSR)
• RoHS 2011/65/EU

Product Documents

• Pro-ONE Brochure PDF
• Pro-ONE Quick Start Guide PDF
• Pro-ONE FW 2.0 User Guide PDF
